Our portfolio includes a complete range of hardware and profiles for glass railing systems, developed for professional use across residential and commercial projects.
Whether you are designing a premium balcony, a shopping mall, a hotel environment, a stair safety barrier, or a minimalist pool enclosure, our systems meet both technical requirements and design expectations.
Below, we present different installation types, key system differences, and the advantages of each solution. All products are manufactured from high-quality aluminium and stainless steel, ensuring durability, weather resistance, and certified safety performance.
Glass Railing Systems: Profiles and Hardware
The most widely used continuous profiles for glass railings are designed for easy installation, high structural strength, and an excellent price-to-performance ratio.
They are used with laminated tempered glass ranging from 5+5 mm up to 12+12 mm, with maximum railing heights of up to 1.5 m. Hardware from the specialized manufacturer Baros Vision is engineered to withstand horizontal loads of up to 4.0 kN/m.
Handrails are made of aluminium and available in multiple styles, including a decorative “slimline” option, as well as round, square, and rectangular shapes.
Below is a selection of our best-selling glass railing systems. Our full range is significantly broader, explore the complete portfolio via the link provided.

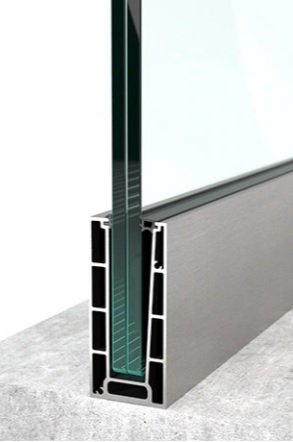

BV4500 ECO – Surface-Mounted Aluminium Profile
A slim and discreet solution

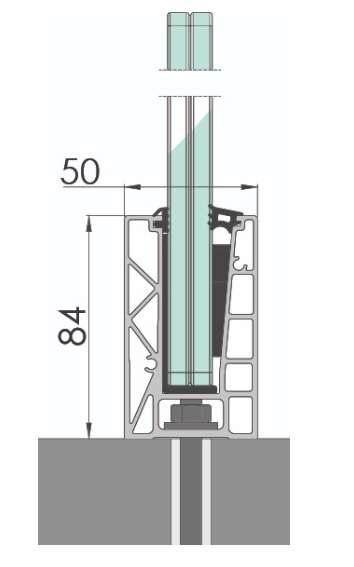

dimenzije BV4500eco
nasadni tip
A compact aluminium profile with a width of just 50 mm, suitable for both interior and exterior use, particularly in areas with lower load requirements. Commonly used in galleries, residential staircases, or as a refined protective barrier.
A durable and functional aluminium profile installed directly onto the floor surface. Glass is secured using specialized wedges, eliminating the need for drilling.
Suitable for terraces and balconies in both new-build and renovation projects.
A modern and robust aluminium profile installed close to the slab edge, delivering a more refined, flush visual effect. A budget-conscious solution with strong aesthetic value, easy installation, and minimal maintenance.
Ideal for terraces, balconies, and staircases where a stable yet visually clean railing is required.
BV7600Y – Side-Mounted Profile
For a “floating” visual effect
stranični tip staklene ograde
dimenzije BV7600Y
With its slim design, this profile remains visually discreet while offering strong structural performance. Glass is fixed using internal wedges, without drilling.
Perfect for installations on the outer edges of slabs, terraces, or balconies.
A clean and elegant system for projects where both high-end aesthetics and structural safety are essential.
4500eco
BV7600
BV7600L
BV7600Y
4500eco
Height (mm)
84
Width (mm)
50
Lenght (mm)
5000
Weight m/ (kg)
just profile
with cover
2,75
3,26
Material
EN AW 6060 aluminium
Glass thickness (mm)
10 – 16
Horizontal linear static load ( KN)
2
Maks. glass height (mm)
1020
Mounting Type
top
Fixing Method
M8 concrete anchor bolt
Finish
Anodized aluminium (natural) or Brushed stainless steel
RAL finish available upon request

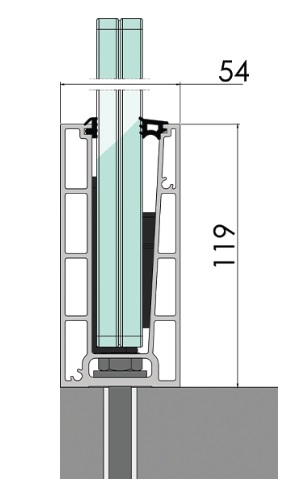

BV7600
Height (mm)
119
Width (mm)
54
Lenght (mm)
5000
Weight m/ (kg)
sjust profile
swith cover
3,73
4,50
Material
EN AW 6060 aluminijum
Glass thickness (mm)
12 – 20
Horizontal linear static loade ( KN)
3
Max. glass height (mm)
1100
Mounting Type
Surface-mounted / recessed-mounted
Fixing Method
M8 / M10 concrete anchor bolt
Finish
Anodized aluminium (natural) or Brushed stainless steel
RAL finish available upon request
BV7600L
Height (mm)
119
Width (mm)
54 / 98,7
Lenght (mm)
5000
Weight m / (kg)
just profile
with cover
4,77
5,58
Material
EN AW 6060 aluminijum
Glass thickness (mm)
12 – 20
Horizontal linear static load ( KN)
4
Max. glass height (mm)
1100
Mounting type
surface mounted
Fixing method
M8 / M10 concrete anchor bolt
Finish
Anodized aluminium (natural) or Brushed stainless steel
RAL finish available upon request
BV7600Y
Profile height (mm)
207.50
Profile width (mm)
59
Profile length (mm)
5000
Weight per meter (kg)
profile only
with cover
5.06
7.50
Material
EN AW 6060 aluminium
Glass thickness (mm)
12 – 20
Linear horizontal load (kN)
3
Max. glass height (mm)
1100
Installation type
side-mounted
Fixing type
M8 concrete anchor bolt
Finish
anodized aluminium (natural) or
brushed stainless steel
RAL finish available upon request
Why choose CASA glass railing hardware?
Fewer complications, faster installation, more reliable results. CASA glass railing systems provide everything contractors need for efficient project execution—without delays or compromises in quality:
✔ Up to 30% faster installation thanks to an optimized system design that saves time on site, especially on larger projects
✔ One system, multiple solutions: adjustable profiles and advanced fixing components simplify on-site adaptation
✔ Compatibility with various glass types and thicknesses flexibility without additional costs
✔ Tested and certified systems ready for technical documentation and use in public projects
✔ Fast and reliable delivery keeping your project timelines on track
✔ Technical support at every stage: from specification and system selection to installation details
✔ Access to certified installation teams for contractors who want a reliable, hassle-free execution
✔ 5-year warranty when installed according to guidelines, reducing claims and strengthening investor confidence
